How to Make Wire Connections Waterproof (5 Methods Ranked)

CE Certified5,000+ Verified ReviewsFree Worldwide Shipping30-Day Money-Back Guarantee

You spliced the wires, wrapped them in electrical tape, and called it done. Three months later, you're back in the mud with a flashlight, tracing a dead circuit because moisture crept in and corroded everything.

Sound familiar?

Outdoor wire connections fail for one reason: water finds a way in. Rain, condensation, ground moisture, even humidity. It doesn't take much to turn a solid connection into a corroded mess. And once corrosion starts, the connection gets weaker every day until it fails completely.

The frustrating part? Most waterproofing methods only delay the inevitable. Electrical tape peels. Liquid tape cracks. Regular heat shrink tubing leaves gaps where the wire enters.

This guide compares five methods for waterproofing wire connections, from the cheapest to the most reliable. Each method gets rated on four criteria that actually matter for outdoor durability:

Waterproof integrity: Can it survive submersion?
UV and temperature resistance: Will it hold up after a year in direct sun?
Mechanical strength: Does the wire stay locked in place under vibration?
Ease of application: Can someone without specialized tools do this?

By the end, you'll know exactly which method matches your project, whether you're wiring landscape lights, running a circuit on your boat, or connecting speakers in your garage.

Electrical tape is what most people grab first. It's cheap, available everywhere, and feels like it should work. Here's why it doesn't last outdoors.

Standard PVC electrical tape loses adhesive strength when temperatures cycle between hot and cold. The plasticizer in the tape leaches out over 3-6 months of UV exposure, turning the tape brittle and cracked. Water wicks under the edges through capillary action.

Where it fails:

UV degradation after 60-90 days of direct sun exposure
Adhesive fails below 32°F (0°C) and above 176°F (80°C)
Zero mechanical bond: the wire can pull free under vibration
No sealant barrier: water enters through the spiral wrap gaps

When it's acceptable:

Indoor temporary connections that you plan to redo properly
Color-coding wires for identification (not waterproofing)

Cost: ~$0.02 per connection Longevity outdoors: 3-6 months before failure

It's not that electrical tape is bad. It was designed for indoor insulation, not outdoor waterproofing. Asking it to seal a connection against rain is like using masking tape to patch a roof leak.

Liquid electrical tape is a brush-on or spray-on rubber compound that dries into a flexible insulating layer. It fills gaps better than standard tape and conforms to irregular shapes.

The problem is durability. Most liquid tape products are single-wall coatings that create a thin barrier that relies entirely on adhesion to the wire surface. Over time, thermal expansion and contraction cycles create micro-cracks. Water enters through these cracks. Once moisture is behind the coating, it accelerates corrosion underneath, and you can't see it happening.

Where it fails:

Micro-cracking after 100+ temperature cycles
Poor mechanical strength: offers zero pull-out resistance
Must be applied in multiple coats to reach adequate thickness
Toxic fumes require ventilation during application

When it's acceptable:

Indoor junction box connections
Patching small nicks in wire insulation
Supplementary layer over another waterproofing method

Cost: ~$0.15 per connection (3-coat application) Longevity outdoors: 6-12 months before micro-crack failure

Better than electrical tape, but still a surface-level solution. It coats the outside without securing the wire-to-wire joint itself.

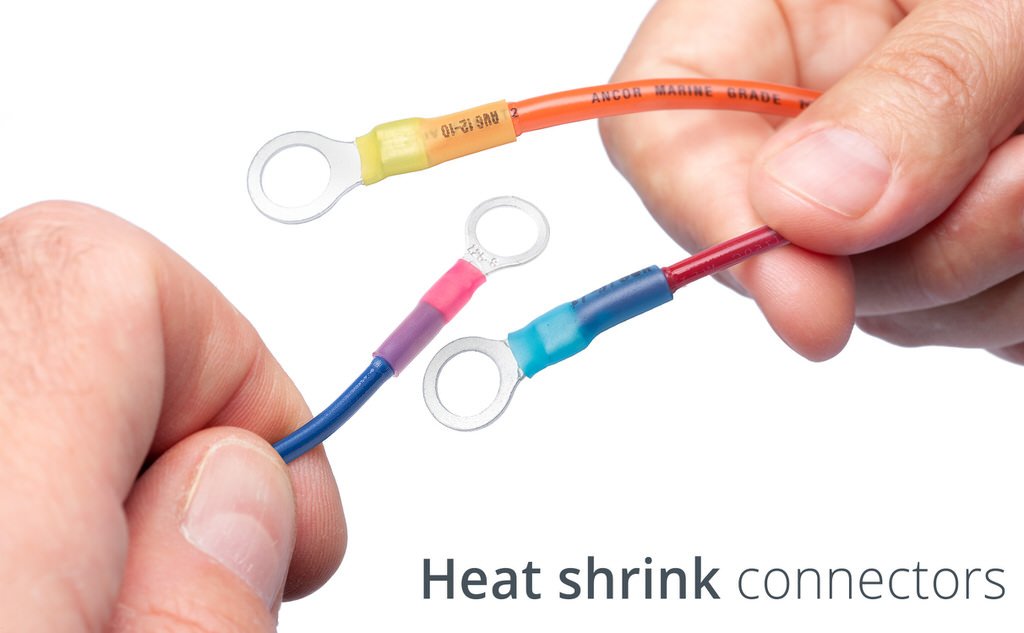

Heat shrink tubing is a step up in durability. The polyolefin tube contracts around the connection when heated, creating a tighter physical barrier than tape or liquid coatings.

But standard heat shrink has a blind spot: the wire entry points. Where the wire enters each end of the tubing, there's no adhesive seal. Water migrates along the wire strands through capillary action and reaches the splice point inside. The connection corrodes from the inside out, while looking perfectly fine from the outside.

Where it fails:

No adhesive lining: water enters at wire entry points
No mechanical bond to the wire (it just squeezes, doesn't grip)
Requires separate soldering step for electrical conductivity
Single-wall construction offers limited insulation

When it works well:

Indoor connections where moisture isn't a concern
Bundling and strain relief on cable assemblies
Paired with a separate solder joint AND liquid sealant (3-step process)

Cost: ~$0.08 per connection (tubing only; add $0.30+ for solder and flux) Longevity outdoors: 12-18 months if both ends are sealed separately

Getting closer. Heat shrink addresses the physical protection problem but leaves the waterproof seal problem unsolved.

Silicone potting compounds fully encapsulate the connection in a waterproof block. This is the gold standard for permanent industrial installations: junction boxes on cell towers, underground utility splices, marine bilge connections.

The trade-off is permanence. Once potted, the connection cannot be inspected, repaired, or modified without cutting it out entirely. Application requires mixing, a mold or enclosure, and 4-24 hours of cure time.

Where it fails:

Irreversible: cannot inspect or modify the connection
4-24 hour cure time (project stops while it sets)
Requires mixing, enclosure, and careful application
Expensive per connection ($1.50-$4.00 depending on compound)
Overkill for landscape lights, speakers, or standard automotive wiring

When it's the right choice:

Permanent underground splices
Marine bilge or below-waterline connections
Industrial applications requiring IP68 or higher

Cost: $1.50-$4.00 per connection Longevity outdoors: 10+ years (essentially permanent)

Excellent protection, but the cost, cure time, and irreversibility make it impractical for most DIY and automotive projects.

This is where the comparison gets interesting.

Solder-seal connectors combine three functions into a single component: a copper solder ring that creates a metallurgical bond, a heat-activated adhesive that seals the wire entry points, and dual-walled polyolefin tubing that shrinks around the entire connection.

One heat application. The copper solder ring melts at 80°C (176°F), flows into the wire strands, and creates a permanent electrical bond. Simultaneously, the inner adhesive lining melts and seals every gap where wire meets tubing. The outer polyolefin wall shrinks tight around everything.

What this achieves that no other method can:

IP67 waterproof rating. Certified submersible for 30 minutes at 3 feet
Metallurgical solder bond + waterproof seal in one step
360-degree adhesive seal at both wire entry points
Mechanical pull-out resistance (the solder grips the wire strands)
No soldering iron, no flux, no sealant, no cure time

You can activate the solder with a heat gun, a lighter, or even a hair dryer. The whole process takes about 20 seconds per connection.

Where it falls short:

Not reusable. Once sealed, you cut and redo
Requires matching the connector gauge to your wire size
Slightly more expensive per unit than plain heat shrink tubing

Cost: $0.17-$0.27 per connection (depending on kit size) Longevity outdoors: 10+ years (permanent waterproof bond)

For less than a quarter per connection, you get a waterproof, solder-bonded, certified connection that outlasts every other method except industrial silicone potting. At a fraction of the cost and with zero cure time.

Comparison

Head-to-head

Criteria	Electrical Tape	Liquid Tape	Heat Shrink	Silicone Potting	Solder-Seal
Waterproof Integrity	1/10	3/10	4/10	10/10	9/10
UV/Temp Resistance	2/10	4/10	7/10	9/10	8/10
Mechanical Strength	1/10	2/10	5/10	8/10	8/10
Ease of Application	9/10	6/10	5/10	2/10	9/10
Cost per Connection	$0.02	$0.15	$0.38+	$1.50-$4.00	$0.17-$0.27
Outdoor Longevity	3-6 mo	6-12 mo	12-18 mo	10+ yr	10+ yr
Tools Required	None	Brush	Heat gun + iron	Mixing + mold	Heat gun or lighter
Overall Score	2/10	4/10	5/10	6/10	9/10

If you've decided solder-seal is the right method for your project, here's exactly how to get a perfect connection every time.

Step 1: Strip the wire Remove 8-10mm (about 3/8 inch) of insulation from each wire end. Use a wire stripper matched to your gauge. Don't use a knife, which can nick the copper strands.

Step 2: Match the connector to your wire gauge The connectors are color-coded. Red for 22-18 AWG (standard landscape and speaker wire). Blue for 16-14 AWG (automotive circuits, medium loads). Yellow for 12-10 AWG (high-current applications like amplifiers or marine equipment).

Step 3: Insert the wires Slide each stripped wire end into opposite sides of the connector until the copper strands reach the center solder ring. You should feel the wire stop against the ring.

Step 4: Apply heat Hold a heat gun, lighter, or blow dryer to the center of the connector. Start at the solder ring and work outward. You'll see the tubing start to shrink and adhesive bead at the ends. That's the sealant doing its job.

Step 5: Inspect The finished connection should show:

Clear adhesive squeeze-out at both wire entries (confirms the seal)
Smooth, tight tubing with no air pockets
No exposed copper visible

Total time: about 20 seconds per connection.

That's it. No flux, no iron, no mixing, no cure time. The connection is waterproof and load-bearing the moment it cools.

Still not sure which method fits your situation? Here's the quick reference.

Choose electrical tape if: You need a temporary indoor fix that you plan to replace within a week.

Choose liquid tape if: You're patching a small nick in wire insulation indoors, or adding a supplementary layer over another method.

Choose standard heat shrink if: The connection will stay indoors and dry, and you already have solder and a soldering iron for the electrical bond.

Choose silicone potting if: The connection is permanent, underground, or below the waterline on a boat. and you never need to inspect or modify it again.

Choose solder-seal connectors if: The connection is outdoors, exposed to rain or moisture, needs to be vibration-resistant, and you want a permanent waterproof bond without specialized tools. This covers landscape lighting, automotive circuits, boat wiring, solar panel connections, outdoor audio, and garage or workshop wiring.

For 90% of DIY outdoor electrical projects, solder-seal connectors offer the best combination of waterproofing, durability, ease, and cost.

Regardless of which method you choose, these mistakes cause the most failures:

1. Not stripping enough insulation If the bare copper doesn't fully contact the connector or solder, you get a cold joint. Strip 8-10mm. Measure it, don't guess.

2. Wrong gauge connector for the wire An 18 AWG wire in a 12-10 AWG (yellow) connector won't fill the barrel. Loose fit means weak bond and water ingress. Always match the color code.

3. Applying heat unevenly Start at the center and work outward to push air out of the tubing. Heating from one end traps an air bubble that becomes a moisture pocket.

4. Skipping the squeeze-out check After shrinking, look for adhesive beading at both wire entry points. If you don't see it, the seal isn't complete. Apply more heat to the ends.

5. Working in the rain Moisture trapped inside the connector during application gets sealed in permanently. Do the connection work in a dry environment, then install.
