May 11, 2023 2 min read

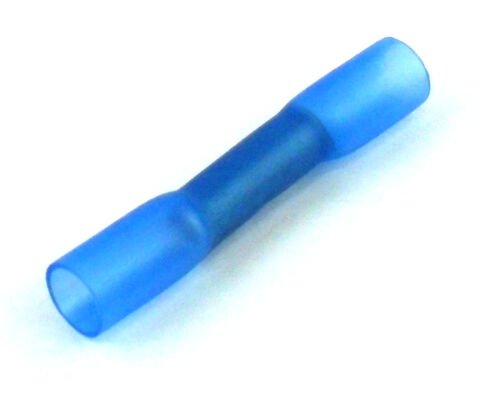

Heat shrink connectors are electronic components that are used to connect wires and electric cables. These connectors are designed to be safe, durable and reliable, but it is important to heat them correctly to ensure the best possible connection. In this article, we will discuss how to properly heat shrink connectors.



Choose the right heat shrink connector size

The first step to heat shrink connectors correctly is to choose the correct size. There are many different sizes of connectors available, and it is important to choose the right size for the yarn you are using. A very large connector may not shrink enough to grip the wire properly, while a connector too small can tear or break.



Cut the wires and remove the insulation

Before connecting the wires, it is important to cut them to the correct length and remove the isolation. Use wire cutters to cut the wire to the correct length and then use a stripping pliers to remove about 1.5 cm of insulation from the wire. Make sure that the wire is clean and free of debris as this can affect the connection.



Slide the connector over the wire

Slide the heat shrink connector over the bare wire until it is about 1 cm below
from the end of the wire. Make sure the connector is positioned correctly and that it is in the correct size for the wire.



Heat the connector

There are several ways to heat a heat shrink connector. The most common way is to use lighter, hair dryer or heat gun. If you are using a lighter, light it and hold the connector about 5 cm above the flame. Move the connector continuously to ensure it heats evenly. If you are using a hairdryer or a heat gun, set the temperature to the lowest setting and hold the connector about 10 cm away. Again, move the connector continuously to ensure it heats evenly.



Verify the connection

After heating the heat shrink connector, check that the connection is correct. The connector must be firmly attached to the wire and there should be no gap between the connector and the wire. If the connection loose or if there is slack, heat the connector again until it is correctly connected.





Protect the connection

After checking the connection, secure it with an additional piece of heat shrink tubing or with electrical tape. This will protect the connection from damage and keep moisture and dirt get into the connection.

Warming up heat shrink connectors is an important part of the electrion connection process. It is important to choose the correct connector size, cut the wires and remove the insulation, slide the connector over the wire and heat it properly. Check the connection and properly securing it is the final step in ensuring a secure and reliable connection. With proper techniques, this process can be done easily and successfully, ensuring a safe and durable electrical connection.
