December 28, 2022 4 min read

Learn More about What to Consider When Working with Electrical Terminals

An electrical terminal will connect two or more electrical conductors that are similar - for instance, one wire to the other - in order to create an electrical circuit. Just as well, it helps to prevent problems such as abrasion, moisture, and interference. A terminal can be an important part of your wire connectors kit, and you need to understand how to make use of it.

These are essentially connectors that are used at the point when a conductor has ended - perhaps a chassis, a stud, or any fixed post. However, it is also worth noting that while all terminals serve as connectors, not all connectors are terminals.

When customizing an electrical wire harness for your application, one of the most critical steps will be finding the right electrical terminal that you can use. With the right terminal, you will be able to ensure a safe wire connection that is also consistent and reliable.

Since electrical terminals come in different sizes, shapes, and materials, knowing your options and picking the right one will make all of the difference for you. So, in this article, we’ll look into some of the critical things you need to know while selecting an electrical terminal.

Electrical Terminal Options

The first thing you will need to keep in mind are the different types of electrical terminals available to you. Usually, you can find these options in both insulated and non-insulated options, allowing you to enjoy a safer alternative when it comes to how to solder wires.

Generally, your options can be broken down into the following:

Ring Terminals:

These round-ended terminals allow you to ensure an easy, near-permanent attachment to studs or screws. Until the fastener is removed, the stud or screw will be firmly attached to the terminal block.

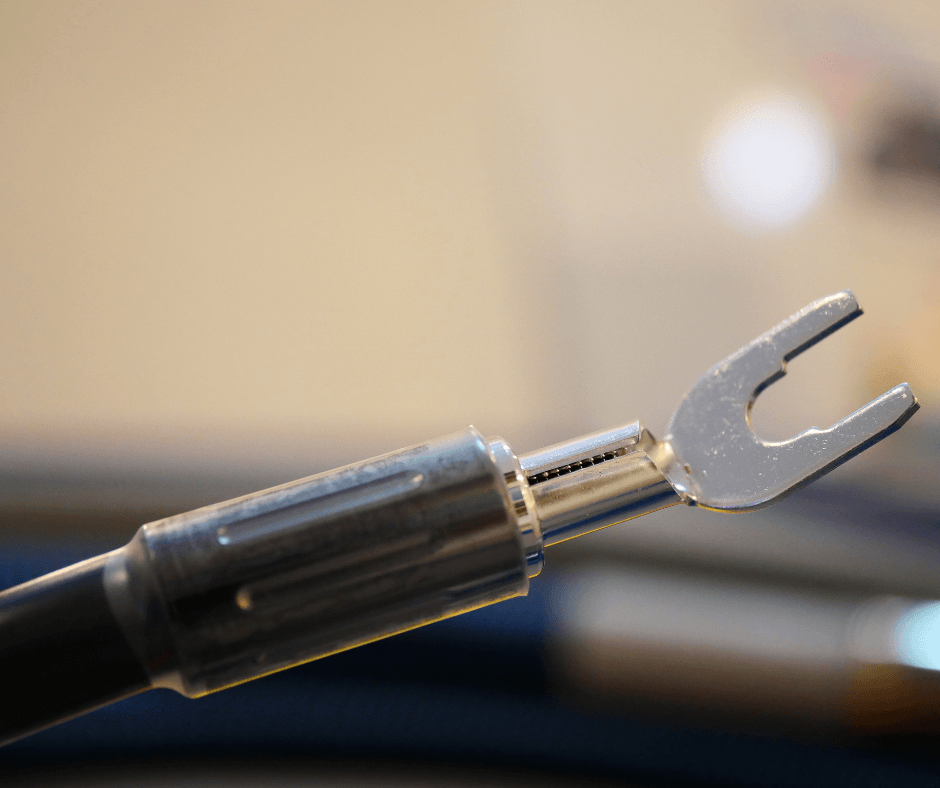

Fork Terminals:

These terminals are perfect for wire harnesses with small space limitations. Also known as tongue or spade terminals, they come with fork-like, open-ended heat that allows for seamless attachment to screws and studs.


Hook Terminals:

They are similar to fork terminals in terms of ease of use. They have open hook shapes that allow them to be detachable without having to remove the fastener. So, they might not be the most reliable option out there.

Quick Disconnects:

As the name suggests, a quick disconnect is built for quick mating and unmating. Also called tab terminals, they are popular for both consumer and industrial applications that require frequent replacement or repair.

Flag Terminals:

These terminals come with crimped barrels that are perpendicular to a tang/stud hole centerline. They provide a unique option for right spaces and complex angles.

Bullet Terminals:

Offering a hollow, socket-shaped female connector and a bullet-shaped male connector of the same size, these terminals easily snap and can hold a firm grip.

Ferrule Terminals:

Ferrule terminals come with barrel-shaped caps that slip over and cover frayed wires entirely, offering a more reliable connection to a terminal block.


Butt Terminals:

Butt terminals round out the list. They are usually applied in extending wiring, butt connections, and they connect wires in a sheath-like tube - thus allowing better crimping and connection.


Considerations For Choosing an Electrical Terminal

Now that we know the different electrical terminal options available, let’s consider what you need to have in mind when making a selection:

Electrical requirements

First, you will need to determine the current and voltage requirements for each contact. You want to ensure that you have the right number of contacts, and that each contact carries the proper demands of your entire application.

The contact’s size - as well as that of the wire - will dictate the current-carrying capability of your contact. Also, consider metrics like insulation materials, contact spacing, and the design of the insulator used to isolate contacts when considering voltage rating.

Adding functionalities

When you identify the right electrical requirements, go ahead to find whether other functions can be added to the terminal - and if they should be added.

Usually, hybrid terminals come with custom designs. However, if you have the time to develop a specific terminal that meets your needs, then all the better. So, would you need a push terminal connector that’s easier to manage and has more functionalities, ask the manufacturer and see what they have for you.

Termination types

The type of termination will also directly affect the assembly process and terminal’s ability to seal a connection. Most terminals come with solder contacts that are usually easier to seal against things like abrasion and moisture. However, there are also crimp contacts that can offer higher levels of field reparability.

When choosing, you’d need to make a trade-off between both options. So, you will need to decide on which option to choose based on your requirements. Nevertheless, you should know precisely how and where the terminal will be used before making a decision
